Overview

General Description:

220V AC powered, 15A relay output temperature controller.

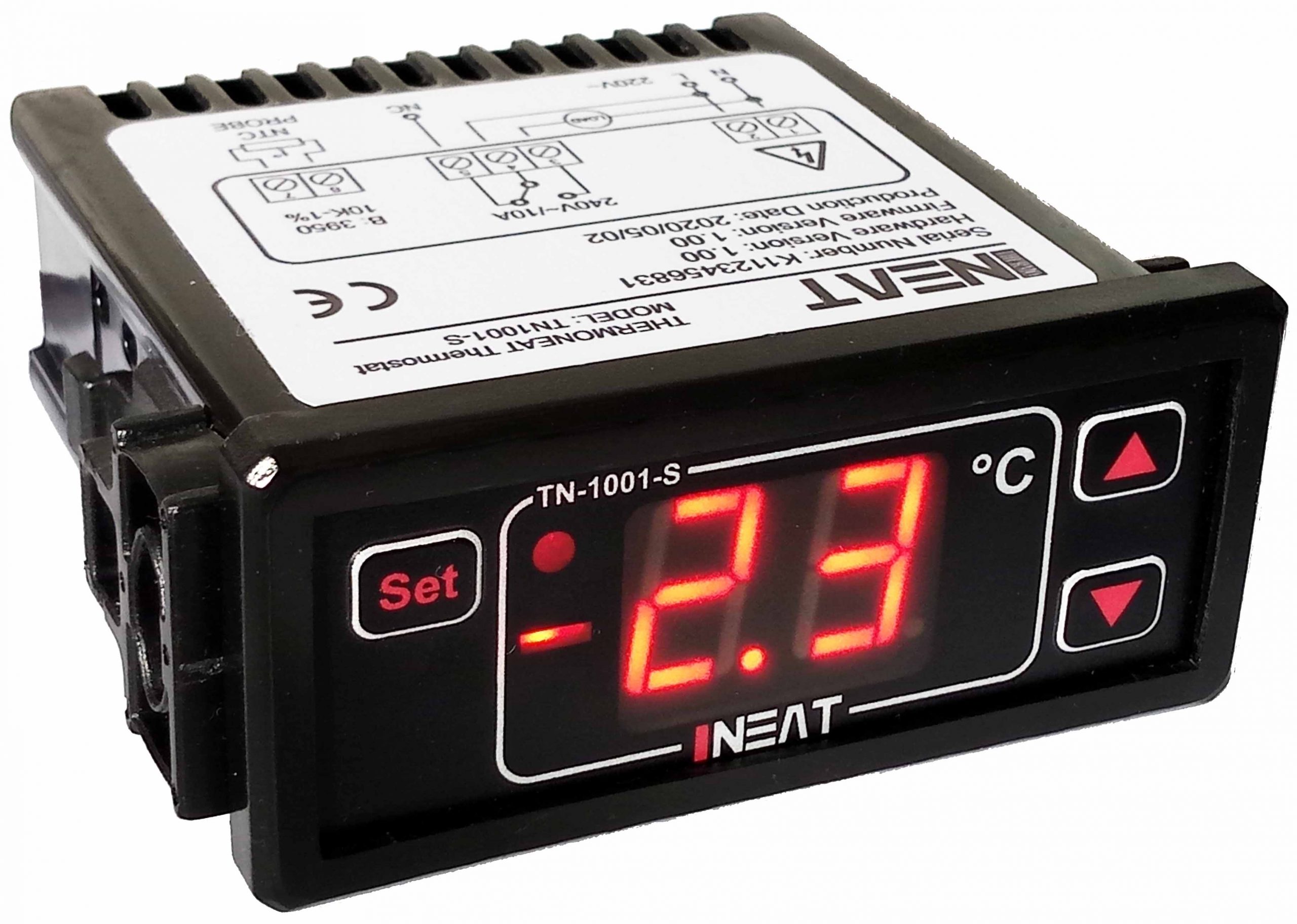

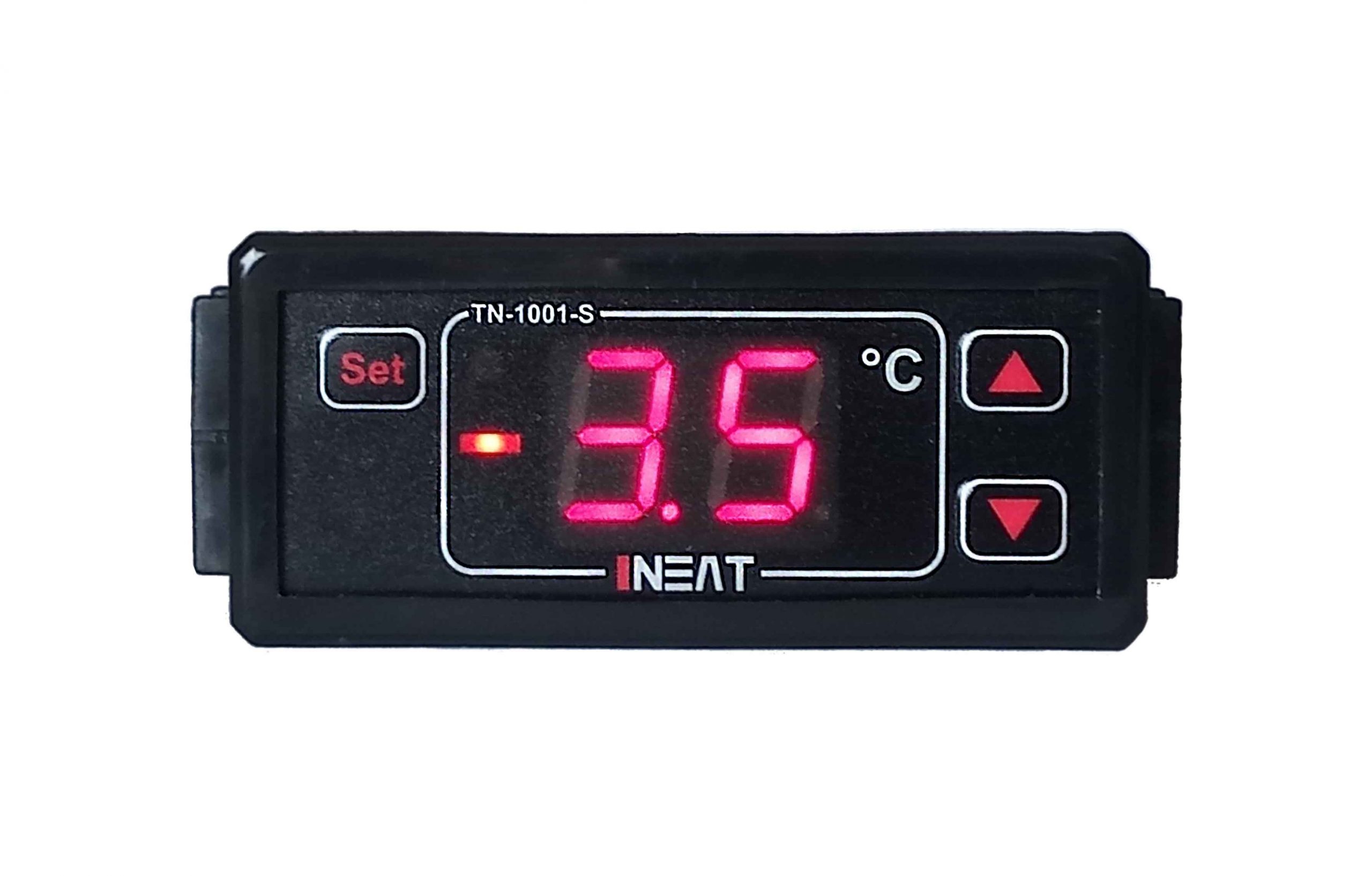

TN-1001-S digital thermostat is a microcontroller-based devices suitable for cooling or heating control applications. It utilizes a relay to drive a compressor or a heater. It uses an NTC type sensor to measure the temperature value. It is fully configurable through defined parameters in the setting menus which can be set via keypad.

Main features

  • Accurate temperature measurement
  • Can be used as a cooling or heating controller by setting the application mode
  • Output delay protection at startup
  • Compressor delay protection
  • Sensor calibration
  • Two access levels for setting the parameters with two separate passwords
  • Output rest time, Adjustable cycle Intervals and duration time
  • Temperature setting range limitation for end users
  • Displaying status of the output
  • Displaying compressor rest time activation
  • Displaying temperature value with decimal point (-10 <T< +10°C)
  • Configurable smart function in sensor failure condition
  • Keypad lock function

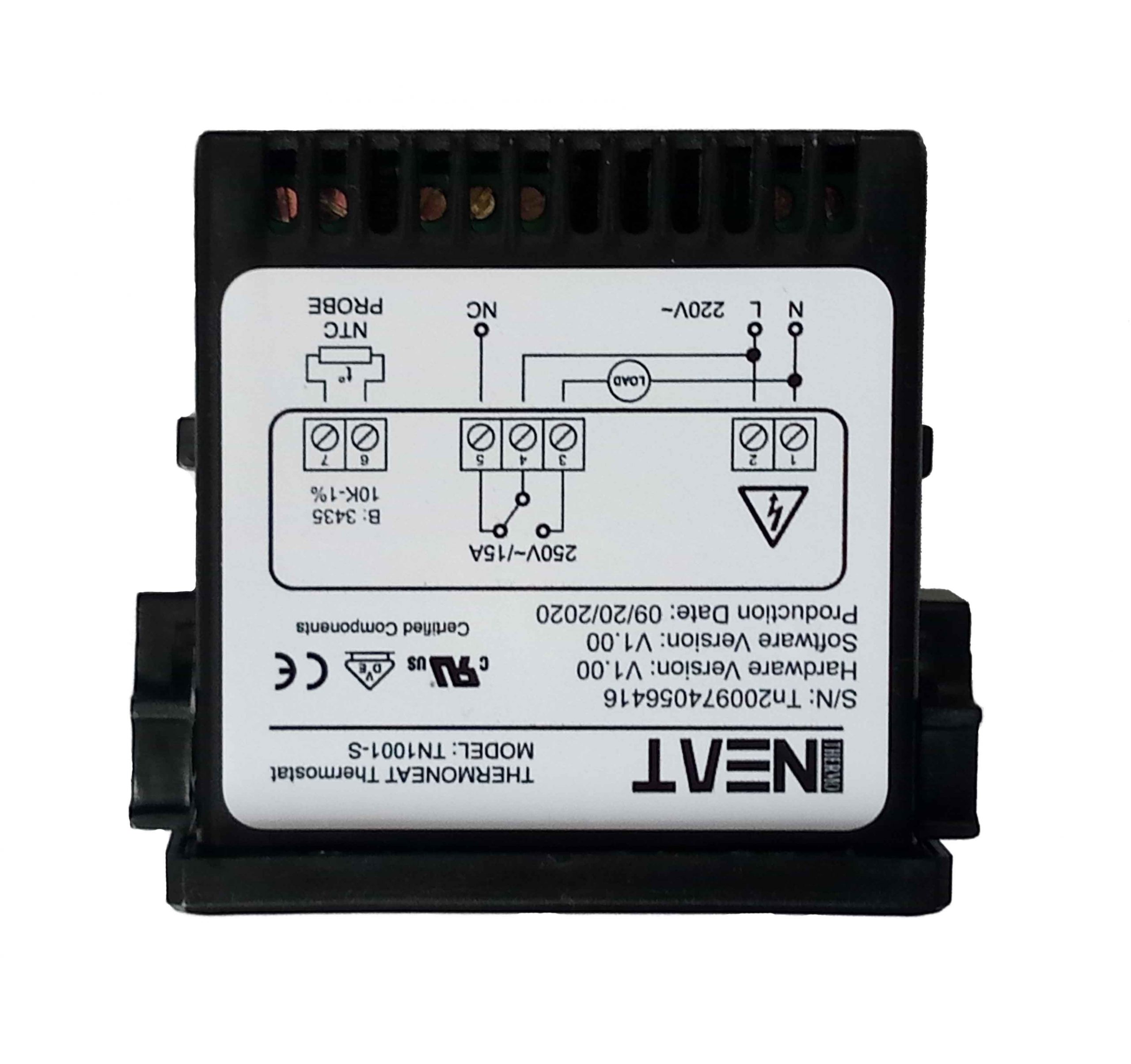

Product Info

Working voltage 220V AC ±20%, 50~60HZ
Relay output 15A, 220V AC, 0.5hp Maximum
Power consumption <2W

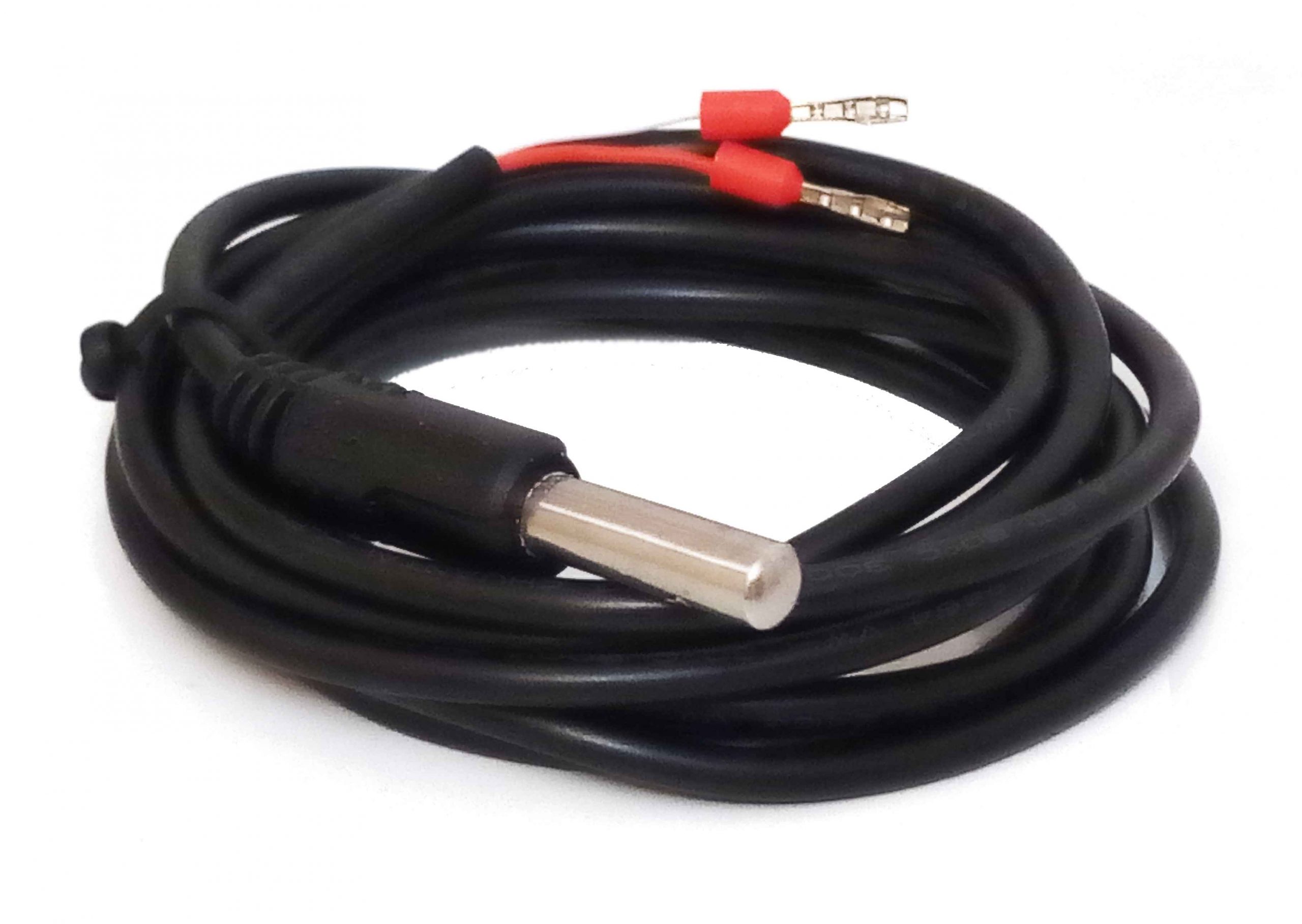

Sensor type NTC 10KΩ at 25°C
Temperature measurement and regulation range -40 ~ +99 °C
Resolution 0.1°C [-10 < T < +10°C], 1°C [-10 ≥ T ≥ +10°C]
Accuracy ±0.5°C
Index of Protection IP20
Front panel index of protection IP54
Operating temperature 0 ~ +60 °C
Storage temperature -30 ~ +60 °C
Operating humidity 20% ~ 85%
Connector screw terminals
Installing hole size 71 (L) x 29 (W)
Front panel size 77 (L) x 34.5 (W)
Product size 77 (L) x 34.5 (W) x 76 (D)
Sensor wire length 1.5 meters

Key Benifits

01.

saving budget

Cost effective

TN-1001-S is the best choice in your cost effective solution while you can take advantage of it's special options.

02.

High power control

High current relay

High current, 15A relay contact allows to powering up high power compressors and heaters with peace of mind.

03.

Simplicity

Easy to use

Simple installation and easy menu parameters configuration made this device very easy to use and user friendly.

FAQ

Yes, this device can be used to control heating in applications such as greenhouses or incubators.
For this purpose, various other models have been prepared and placed at your disposal. This model is suitable for use in refrigerators.
The performance of this thermostat is guaranteed to drive the compressors up to 0.5 hp directly. To drive more powerful compressors, it is necessary to use an external relay or contactor next to the thermostat.
