220V AC powered, 15A main relay output, Dual 10A relay outputs, Dual NTC sensors, temperature controller.

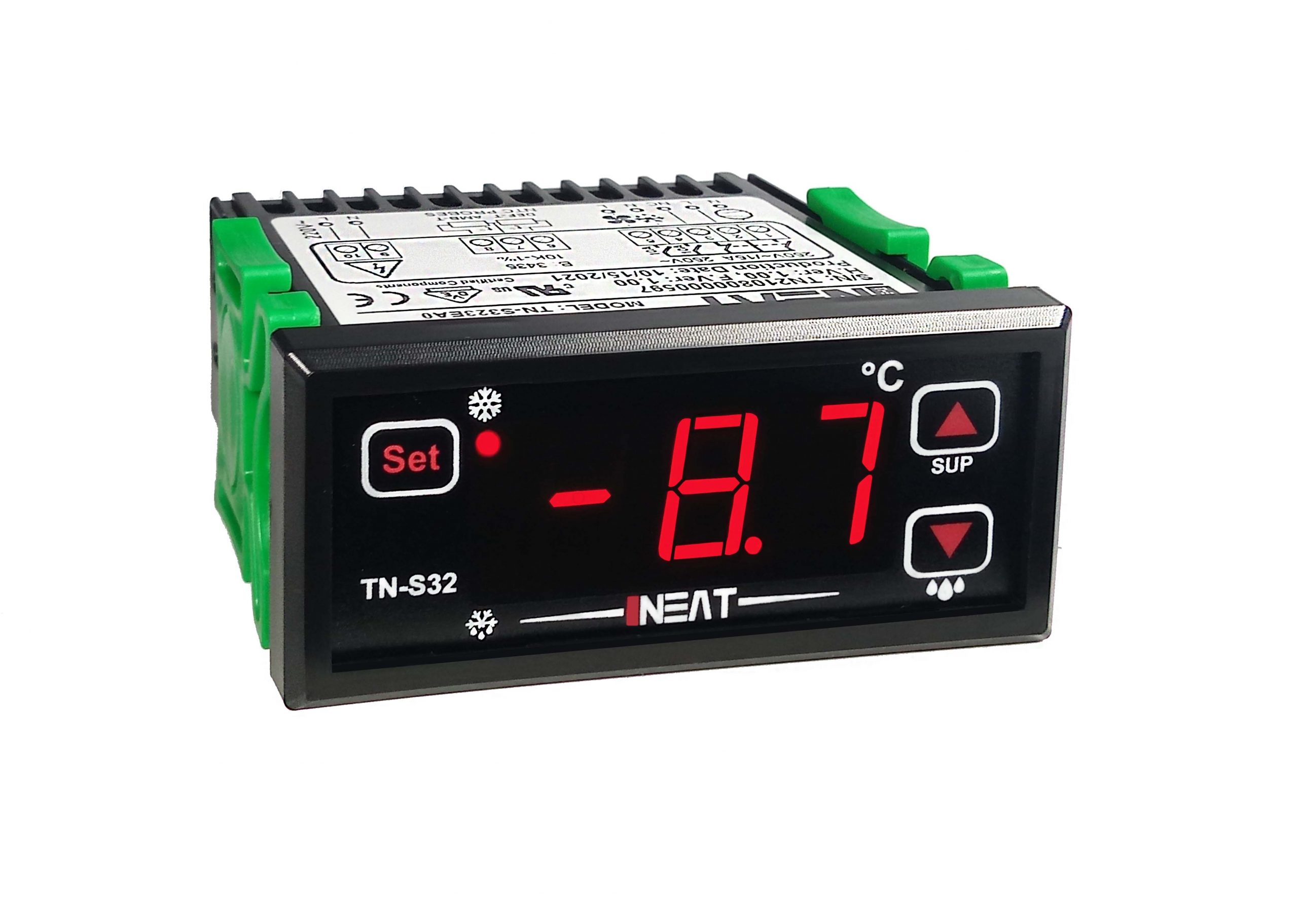

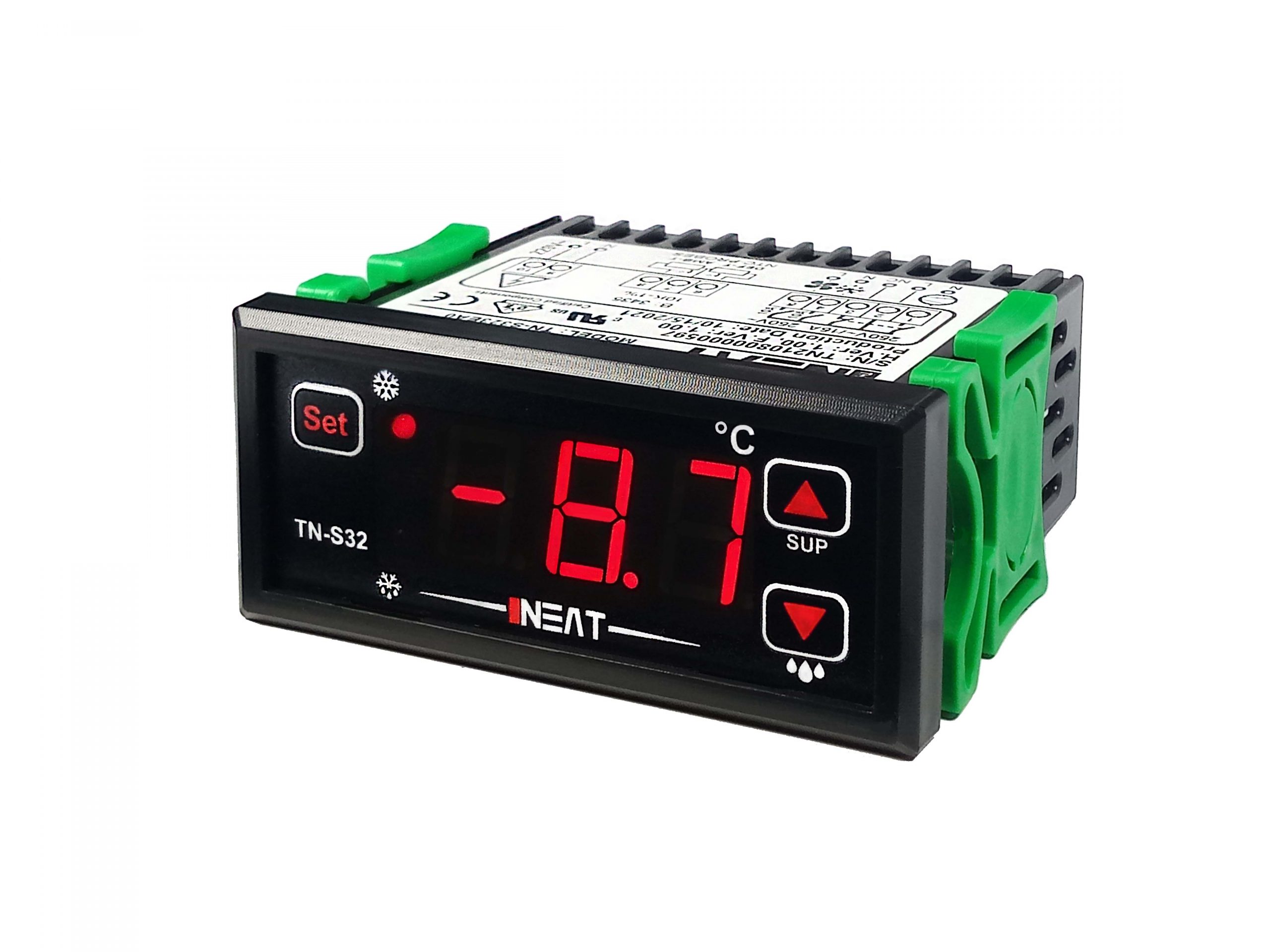

TN-S323EA0 digital thermostat is a microcontroller-based devices suitable for cooling or heating control applications. it utilizes two relays: One for driving a compressor or a heater (main relay) and the other one for defrosting. it uses two NTC-type sensors and is fully configurable through defined parameters in the setting menus which can be set via keypad.

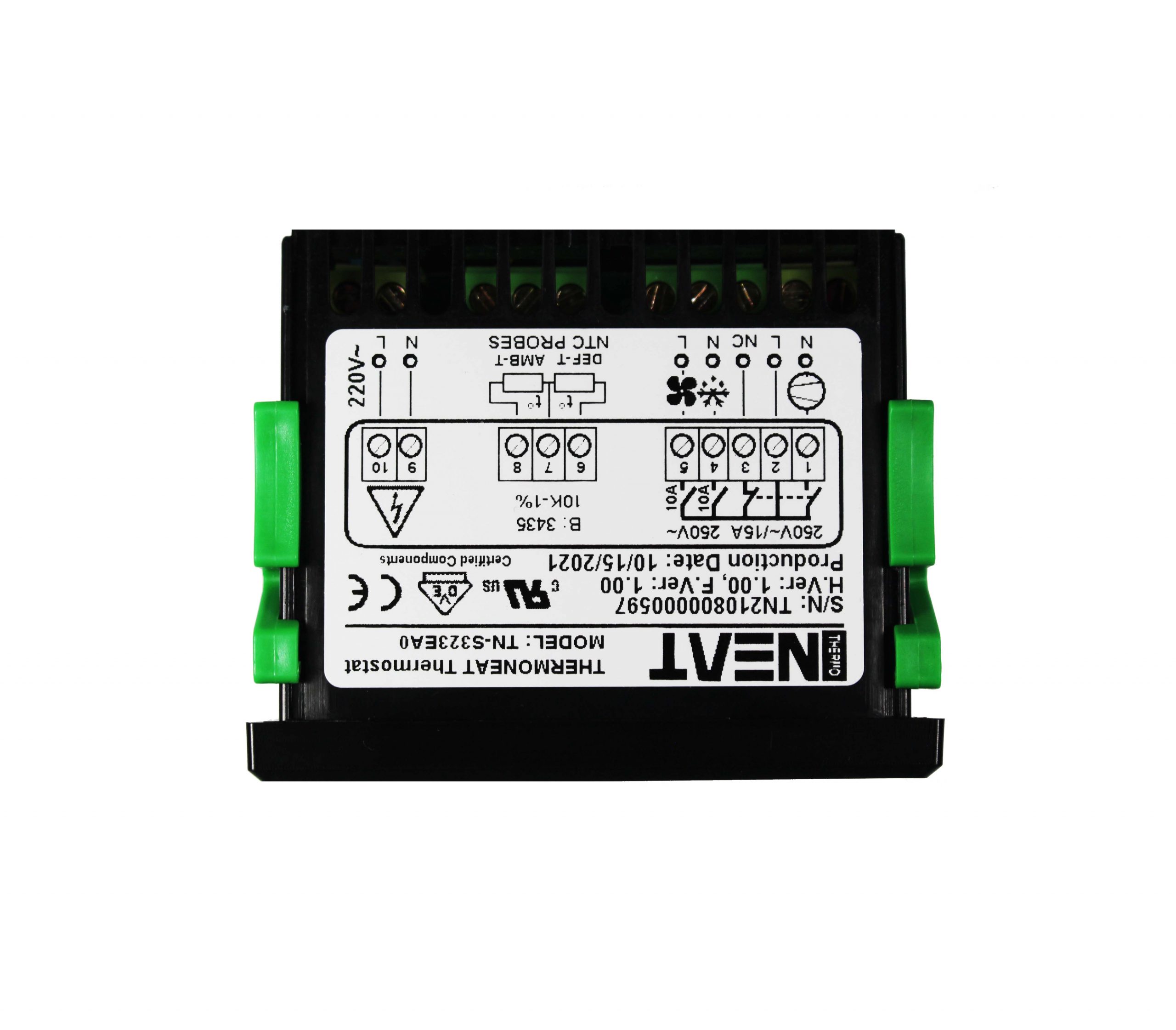

|Working voltage||220V AC ±20%, 50~60HZ|
|Main Relay output (compressor relay)||15A, 220V AC , 0.5hp Maximum|
|Second relay output (defrost relay)||10A, 220V AC|
|Thrid relay output (fan relay)||10A, 220V AC|
|Sensors type||2 x NTC 10KΩ at 25°C, Waterproof, Stainless steel|
|Temperature measurement and regulation range||-40 ~ +99 °C|
|Index of Protection||IP20|
|Front panel index of protection||IP54|
|Operating temperature||-20 ~ +60 °C|
|Storage temperature||-30 ~ +60 °C|
|Operating humidity||20% ~ 85%|
|Installing hole size||71 (L) x 29 (W)|
|Front panel size||77 (L) x 34.5 (W)|
|Product size||77 (L) x 34.5 (W) x 62 (D)|
|Sensors wire length||1.5 meters|
TN-S323EA0 is the best choice in your cost effective solution while you can take advantage of it's special options.
High current, 15A relay contact allows to powering up high power compressors and heaters with peace of mind.
Simple installation and easy menu parameters configuration made this device very easy to use and user friendly.
